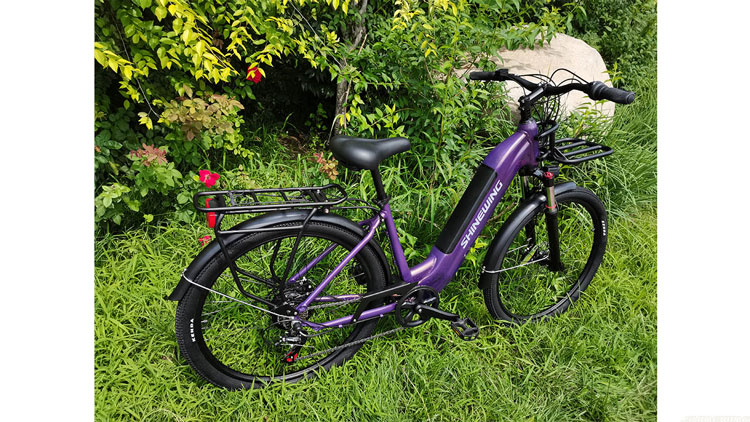

SWE033A rear hub motor electric trekking bike
更新时间：2023-04-20 11:48:42
访问量：1416
|
ELECTRIC PARTS |
|
|
Motor |
Rear Motor,36V250W #YTW-03, disc brake, 7spd, screw freewheel, 13G 36H |
|
Display |
LCD-P6, PC+ABS,L 60mm W 46mm H 14.5mm |
|
Battery & case |
#SYR-011 52cells, fully integrated &lockable downtube battery, 36v 13A, Lishen 18650, 2600MA |
| Charger |
42V/2A,DC2.1 port, EU 2pin |
|
FRAME SET |
|
| Frame |
28*460mm，alloy E-BIKE frame, LADY, 7spd, disc brake, DT:#SYR-011 |
|
Fork |
28" susp. fork, full alloy, disc brake, thread, w/o lock |
|
DRIVETRAIN |
|
|
BB parts |
#B910 119mm |
|
Chainwheel |
#PRO-A36 1/2*2/32 38T*170mm PROWHEEL |
|
R derailleur |
#RD-TY21-B-SGS， SHIMANO |
|
Freewheel |
#MF-TZ21 index, #AMFTZ5007428 |
|
Shifter |
#SL-RS35-7R, right hand, SHIMANO |
|
Chain |
#Z7 1/2*3/32 KMC, index 118L 7spd |
|
Shiter cable |
SP |
