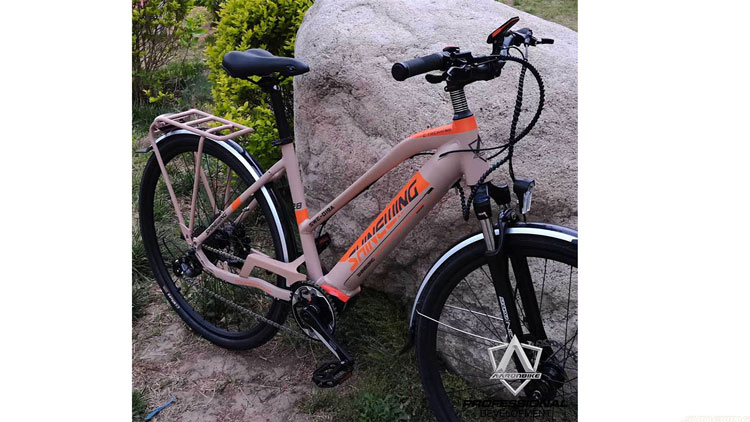

SWE019A electric trekking city bike
更新时间：2023-04-20 11:48:42
访问量：1359
|
ELECTRIC PARTS |
|
|
Motor |
Mid drive Motor, DAPU, #M80M G530.250 36V250W |
|
Display |
BAFANG #C263 |
|
Battery & case |
#HYTY-2 40cells, fully integrated downtube battery, down pick, 36V10.4AH, cells:Lishen L2600 |
| Charger |
42V/2A,DC2.1 port, EU 2pin, DP |
|
Front light |
SATE-LITE G1 blk LED |
|
FRAME SET |
|
| Frame |
700C，alloy E-BIKE frame, LADY |
|
Fork |
NEX, 28" full alloy susp. fork, disc brake, with lock DRIVETRAIN |
|
DRIVETRAIN |
|
|
R derailleur |
#RD-M370-SGS，9spd SHIMANO |
|
Freewheel |
#CS-HG200-9 9SP, Cassette 11-34T SHIMANO |
|
Shifter |
#SL-M2000-9R, right hand, SHIMANO |
|
Chain |
#Z8 1/2*3/32 *124L KMC |
|
Shiter cable |
SP |
|
BRAKE GROUP |
|
|
Brake system |
hydro disc brake, blk #BL-M200-L/R SHIMANO |
|
Brake cable |
2P |
